You’ve invested thousands in product inventory, but damaged packaging during shipping is costing you money and customer trust. With corrugated boxes making up more than 30% of the packaging industry, understanding proper testing methods is crucial for protecting your products and bottom line.
Testing corrugated box strength and durability involves multiple standardized methods including Box Compression Test (BCT), Edge Crush Test (ECT), Drop Testing, Vibration Testing, and Environmental Testing. These tests evaluate compression strength, stacking capability, impact resistance, and performance under various environmental conditions to ensure your packaging protects products throughout the supply chain.
Let’s explore the comprehensive testing methods that can save your business from costly packaging failures and ensure your products arrive safely at their destination.
What Are the Core Strength Tests Every Business Should Know?
Understanding the fundamental strength tests helps you make informed decisions about packaging specifications and ensures your boxes can handle real-world shipping conditions.
The three most critical strength tests are Box Compression Test (BCT), Edge Crush Test (ECT), and Bursting Strength Test. BCT measures maximum stacking weight capacity, ECT evaluates compression strength perpendicular to flutes, and Bursting Strength Test determines puncture resistance under pressure.

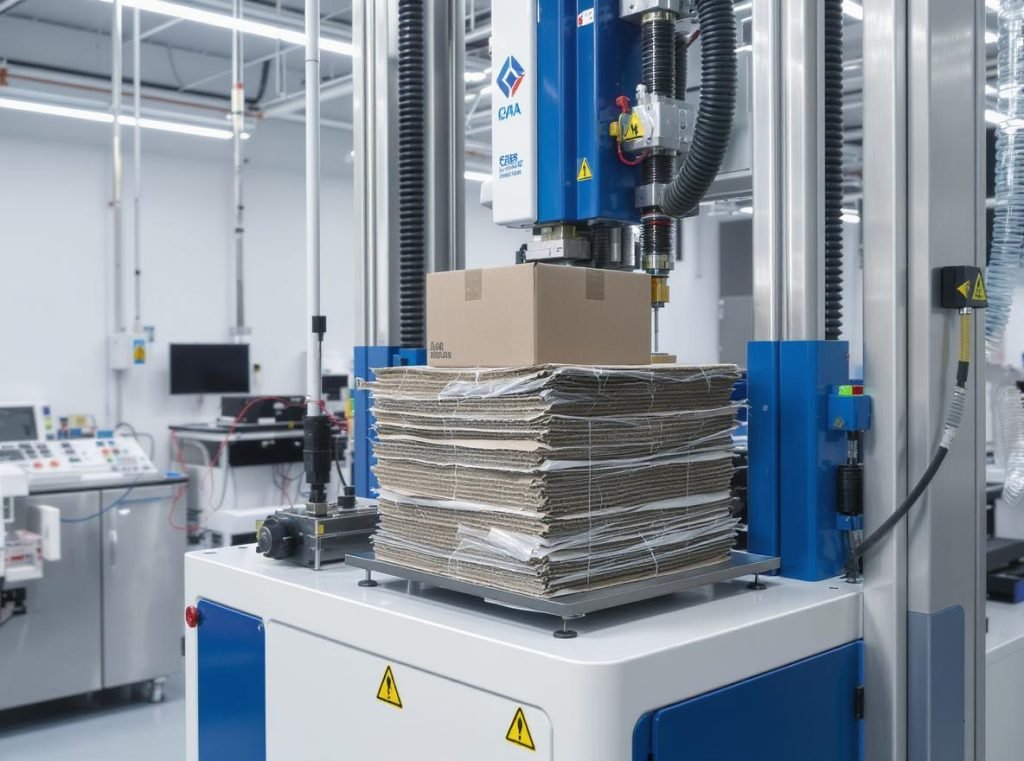

Box Compression Test (BCT) – The Foundation of Packaging Strength
The Box Compression Test measures the maximum compressive force a box can withstand before deforming or collapsing. This test directly indicates how much weight can be safely stacked on top of your boxes during storage and transportation.
BCT testing involves placing the box between two rigid platens and applying force at a constant rate of 1/2 inch per minute until failure occurs. Results are expressed in Newtons (N) or kilograms, with safety factors of 4-5 typically applied to determine working loads.
Key applications include:
- Determining safe stacking heights in warehouses
- Calculating palletizing capabilities
- Evaluating storage duration effects
- Optimizing box design for cost-effectiveness
Edge Crush Test (ECT) – Measuring Vertical Compression Strength
ECT evaluates the compression strength of corrugated material on its edges, conducted according to ISO 3037 standards. This test is particularly important for boxes that will be palletized during shipping.
The procedure involves placing corrugated samples vertically between two plates and gradually applying force until deformation occurs. Results are expressed in kiloNewtons per meter (kN/m) and directly correlate with the box’s ability to maintain structural integrity under vertical compression.
Bursting Strength Test – Evaluating Puncture Resistance
Also known as the Mullen Test, this assessment measures a corrugated box’s resistance to internal pressure and external forces. The test uses a rubber diaphragm expanded hydraulically to apply pressure until the corrugated board bursts.
| Test Type | Measurement Unit | Primary Application | Typical Range |
|---|---|---|---|
| BCT | Newtons (N) | Stacking strength | 200-800 N |
| ECT | kN/m | Vertical compression | 2-8 kN/m |
| Burst Test | PSI | Puncture resistance | 125-275 PSI |
This data helps determine exact weight capacity and evaluates resistance to rough handling during transportation.

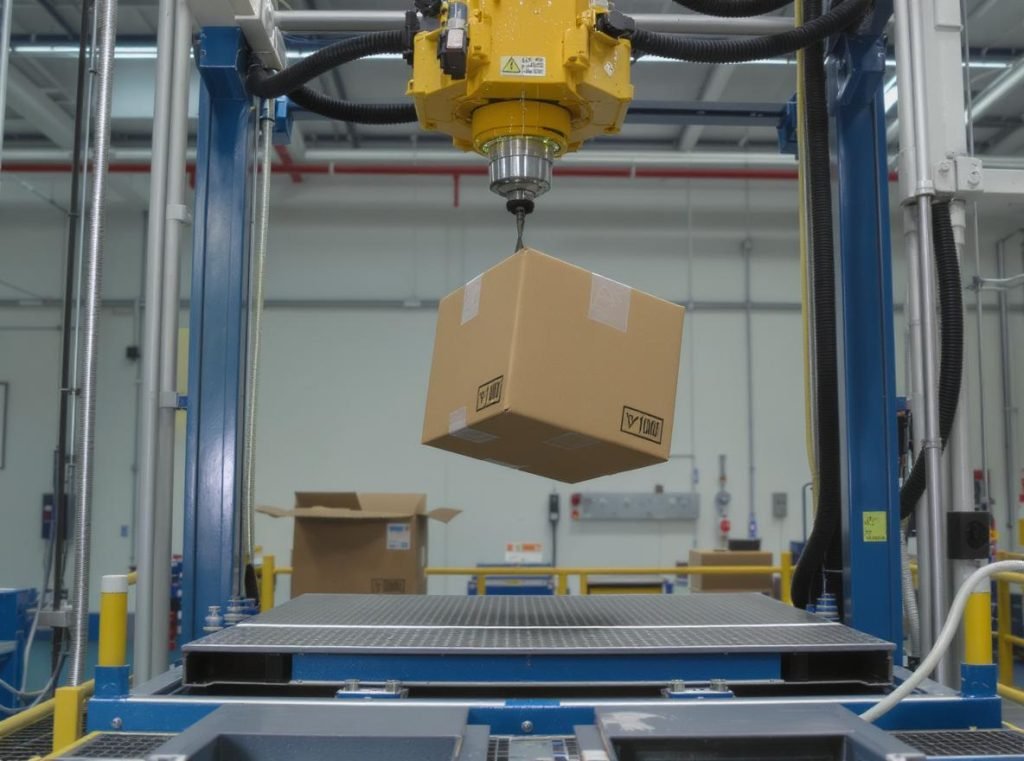

How Do Drop Tests Simulate Real-World Shipping Conditions?
Drop testing is essential for evaluating how your packaging will perform under the impacts and rough handling that occur during shipping and warehouse operations.
Drop testing follows International Safe Transit Association (ISTA) standards, particularly ISTA 1A and 1B protocols. These tests simulate real-world impacts by dropping boxes from predetermined heights and angles to ensure packaging maintains integrity under typical shipping conditions.
ISTA 1A Drop Test – The Industry Standard
ISTA 1A is the most widely used drop test standard, with drop heights determined by package weight:
- Packages under 21 lbs: 30 inches
- Packages 21-40 lbs: 24 inches
- Packages 41-60 lbs: 18 inches
- Packages 61-100 lbs: 12 inches
- Packages 100-150 lbs: 8 inches
The test sequence includes 10 total drops: 1 corner drop, 3 edge drops, and 6 face drops. Each drop targets different vulnerable areas of the package to comprehensively evaluate structural integrity.
ISTA 1B Drop Test – For Heavy Packages
Designed for packages over 150 lbs, ISTA 1B uses a fixed drop height of 6 inches (150mm) with 6 drops total, one per side. This protocol recognizes that heavier packages experience different handling dynamics.
Drop Test Evaluation Criteria
After testing, boxes are evaluated for:
- Structural integrity with no rupture or significant damage
- Content protection ensuring products remain undamaged
- Seal integrity with manufacturing joints intact
- Performance standards meeting predetermined acceptance criteria
Working with experienced packaging manufacturers ensures your drop testing strategy aligns with your specific shipping requirements and customer expectations.

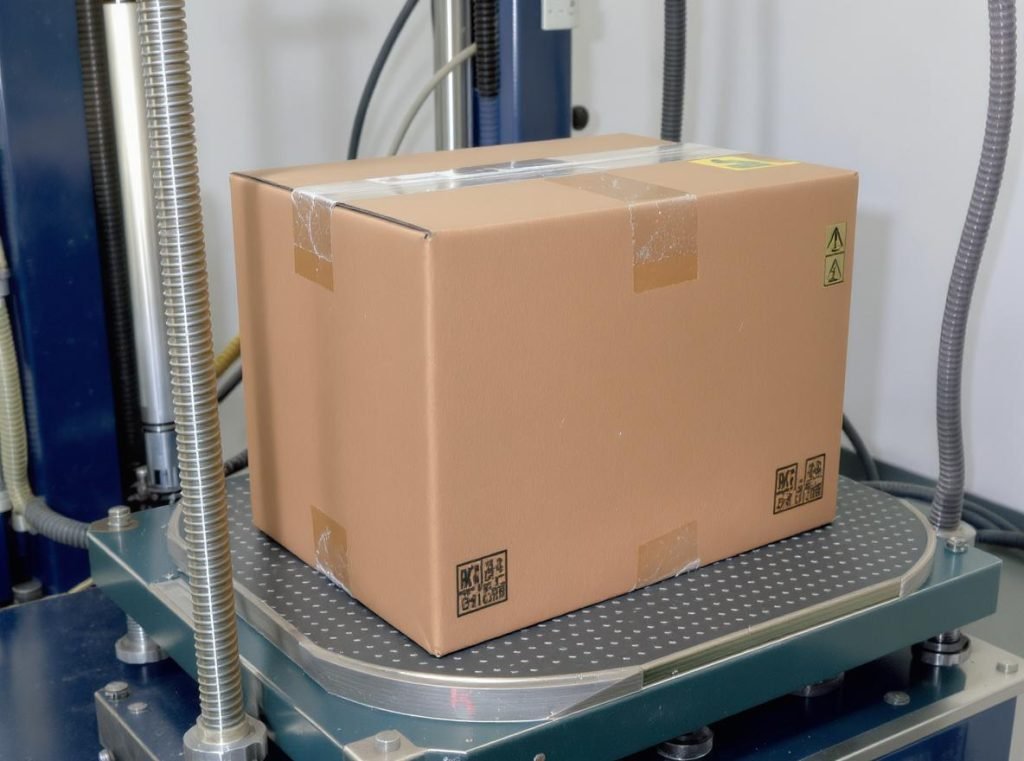

Why Is Vibration Testing Critical for Transportation Safety?
Vibration testing addresses one of the most overlooked causes of shipping damage – the constant vibrations during transportation that gradually weaken packaging and potentially damage products.
Vibration testing evaluates packaging’s ability to withstand transportation-induced vibrations using ASTM standards including D999 and D4728. These tests simulate the complex mix of frequencies and amplitudes that packages experience during truck, rail, and air transport.
ASTM D999 – Standard Vibration Testing
This standard offers multiple testing methods:
- Method A1: Sinusoidal linear vertical motion
- Method A2: Rotary motion testing
- Methods B and C: Resonance testing for containers and palletized loads
The test simulates controlled frequency ranges (typically 3-100 Hz) with specific acceleration levels (0.25-1.0 G) for durations based on transportation mode.
ASTM D4728 – Random Vibration Testing
Random vibration testing provides more realistic evaluation by simulating the complex mix of frequencies and amplitudes that occur during actual transportation. This method uses electrodynamic equipment for precise control and offers more comprehensive assessment than sinusoidal testing.
Transportation modes create different vibration patterns:
- Truck transport: 2-200 Hz frequency range
- Rail transport: Different vibration signatures
- Air transport: Unique patterns during takeoff, flight, and landing
Test evaluation includes structural damage assessment, content displacement analysis, seal integrity verification, and performance against predetermined criteria.
How Do Environmental Conditions Affect Box Performance?
Environmental testing evaluates how corrugated boxes perform under varying temperature and humidity conditions, which is crucial because corrugated materials are hygroscopic and readily absorb moisture.
Environmental testing includes temperature and humidity conditioning, Cobb Test for water absorption, and climate simulation. These tests are essential because moisture content significantly affects corrugated box strength, with performance declining sharply beyond 65% relative humidity.
Standard Environmental Test Conditions
Different environmental conditions are tested to simulate global shipping scenarios:
| Condition | Temperature | Humidity | Application |
|---|---|---|---|
| Standard | 27°C | 65% RH | Normal conditions |
| Tropical | 40°C | 90% RH | Hot, humid climates |
| Extreme | 55°C | 30% RH | Desert conditions |
| Cold | 20°C | 50% RH | Cold storage |
Moisture Impact on Box Strength
Research demonstrates that moisture content significantly affects corrugated box performance:
- Box compression strength decreases as relative humidity increases
- Sharp decline in performance beyond 65% relative humidity
- Optimal moisture content for corrugated boxes is 7-8%
- Boxes with lower Cobb values demonstrate superior performance
Cobb Test for Moisture Resistance
The Cobb Test measures water absorption capacity of corrugated board surfaces, determining how much water the material absorbs in a specified time. Lower Cobb values indicate better moisture resistance, which is critical for:
- Applications in humid environments
- Adhesive bonding strength
- Overall box performance maintenance
- Food packaging requirements

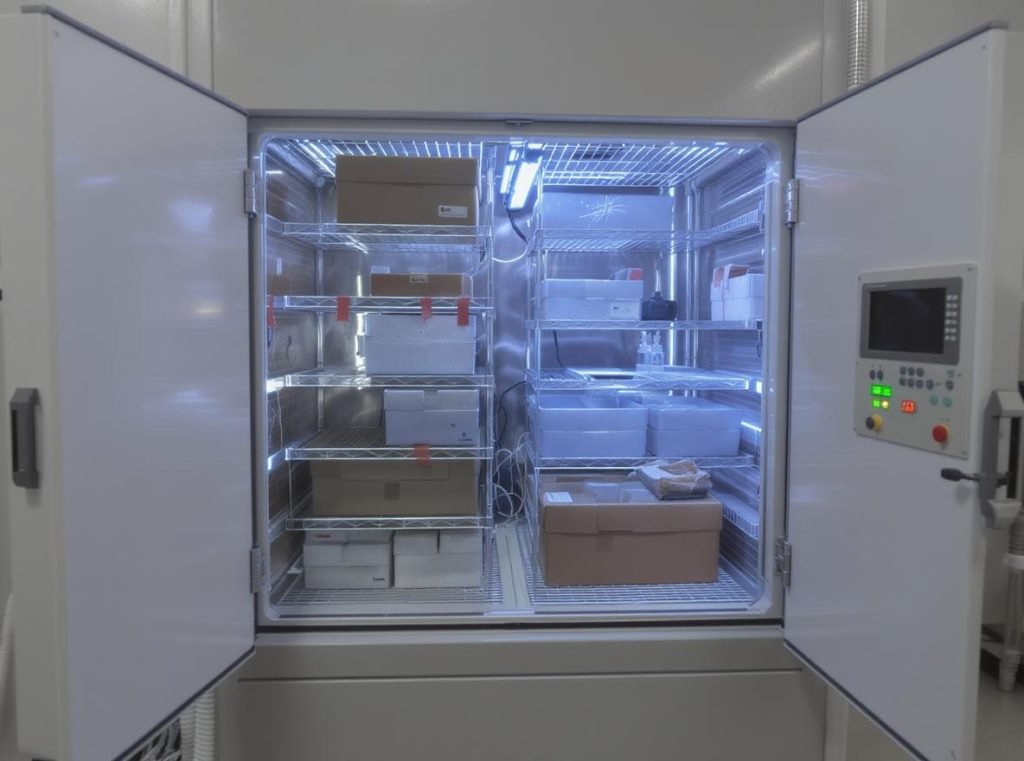

Temperature and humidity chambers provide controlled environments for testing packaging materials under various climatic conditions, simulating storage and transportation conditions, seasonal variations, and extreme environmental exposure.

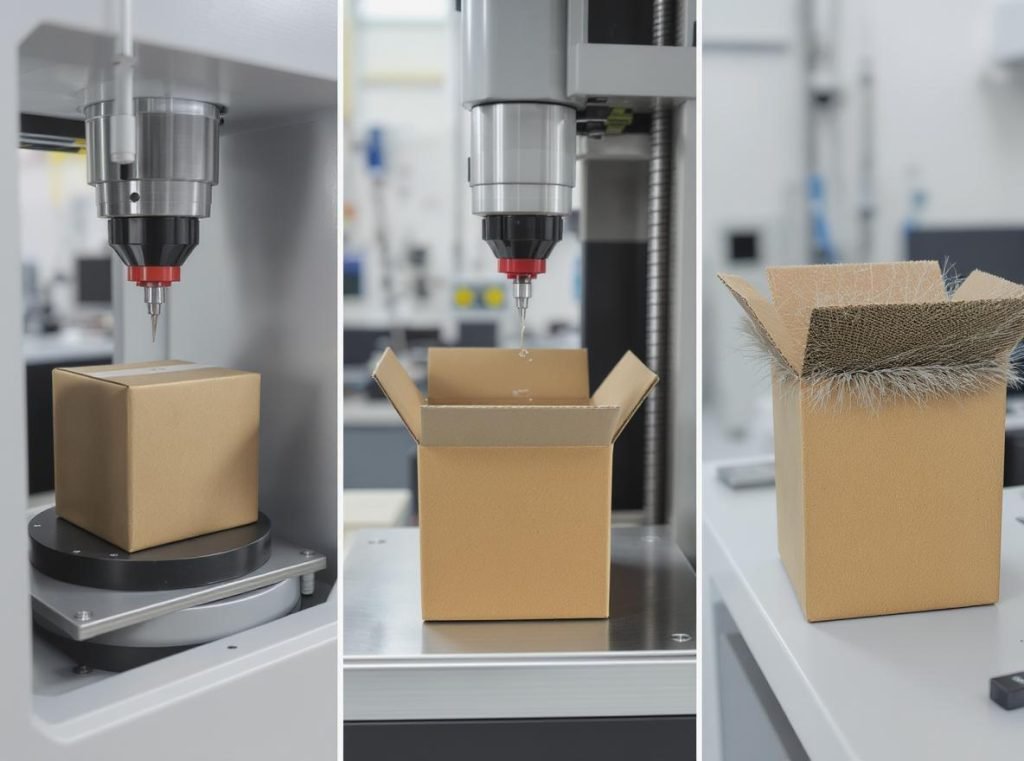

What Specialized Tests Address Specific Industry Needs?
Beyond standard strength tests, specialized testing methods address unique industry requirements and specific shipping challenges that standard tests may not cover.
Specialized tests include Puncture Resistance Testing, Scuff Resistance Testing, and Water Resistance Testing. These tests evaluate specific performance aspects like handling damage resistance, printed surface durability, and moisture protection for specialized applications.
Puncture Resistance Testing
This test evaluates the force required to penetrate corrugated material during handling operations. A triangular pyramid puncture head attached to a swinging pendulum pierces the specimen, measuring the energy required for complete penetration.
Applications include:
- Warehouse handling assessment
- Fork truck loading evaluation
- Sharp object protection
- Internal product protection
Scuff Resistance Testing
Scuff resistance testing evaluates the durability of printed surfaces on corrugated boxes using motorized equipment with rotating discs to simulate continuous friction. This test measures the packaging’s ability to withstand abrasion during handling.
This testing is crucial for:
- Branded packaging where appearance matters
- Retail-ready packaging
- Multiple handling scenarios
- Customer perception maintenance
Water Resistance Testing
Specialized water resistance tests evaluate corrugated boxes’ ability to withstand water exposure, particularly important for refrigerated storage applications, humid transportation conditions, outdoor storage scenarios, and food packaging requirements.
These tests simulate real-world exposure conditions and help determine appropriate protective coatings or treatments needed for specific applications.
How Should You Interpret Test Results for Better Packaging Decisions?
Understanding test results enables data-driven packaging decisions that balance protection, cost, and performance requirements for your specific application.
Effective interpretation requires understanding the relationship between test values and real-world performance. BCT values indicate maximum stacking weight with safety factors applied, while drop test results guide packaging design modifications. Comparing results against established benchmarks ensures compliance and optimal performance.
Understanding Compression Test Data
BCT values directly relate to stacking capability:
- Apply safety factors of 4-5 to determine working loads
- Account for environmental conditions in calculations
- Consider storage duration effects on performance
- Correlate ECT values with stacking performance
For example, a box with 400N BCT rating can safely support approximately 80-100N of stacking weight under standard conditions.
Analyzing Drop Test Results
Drop test interpretation requires predetermined pass/fail criteria:
- Damage assessment includes both packaging and contents
- Multiple sample testing increases confidence levels
- Results guide specific packaging design modifications
- Consider cumulative effects of multiple impacts
Creating Performance Benchmarks
Establish performance benchmarks based on:
- Product-specific requirements and weight
- Typical shipping distances and transportation methods
- Storage conditions and duration expectations
- Customer handling requirements and expectations
| Performance Level | BCT Range (N) | ECT Range (kN/m) | Drop Height | Application |
|---|---|---|---|---|
| Light Duty | 200-400 | 2-4 | 18-24 inches | Lightweight products |
| Standard | 400-600 | 4-6 | 24-30 inches | General shipping |
| Heavy Duty | 600-800+ | 6-8+ | 30+ inches | Heavy/fragile items |
Regular testing ensures consistent quality and helps identify when packaging specifications need adjustment for optimal performance.
When Should You Conduct Corrugated Box Testing?
Timing your testing strategy correctly ensures maximum protection while optimizing costs and avoiding supply chain disruptions.
Conduct corrugated box testing during initial packaging design, when changing suppliers, after design modifications, when experiencing shipping damage, and when entering new markets. Testing should occur toward the end of prototyping and early in pilot production phases.
Development Phase Testing
Optimal testing timing during development:
- Test toward the end of prototyping phase
- Conduct testing early in pilot production
- Ensure product and packaging are near final iteration
- Test products as they will leave manufacturing facility
This timing ensures test results accurately reflect final production conditions while allowing time for modifications if needed.
Production Testing Schedule
Regular quality control testing should include:
- Monthly testing for routine production (3-5% of batch sampling)
- Immediate testing after design changes
- Quarterly testing for stable, low-volume products
- Annual testing for established products with consistent performance
Trigger Events for Testing
Specific circumstances requiring immediate testing:
- New product launches or significant modifications
- Packaging material changes or supplier switches
- Manufacturing process modifications
- Transportation method or route changes
- Environmental storage condition changes
- Customer specification updates or complaints
Testing Requalification Requirements
Testing requalification is typically required when changes occur to:
- Product contents, weight, or dimensions
- Packaging materials, design, or construction
- Manufacturing processes or equipment
- Distribution methods or transportation modes
- Storage conditions or duration
- Regulatory requirements or industry standards
Partnering with experienced packaging manufacturers like Acreet ensures your testing strategy aligns with industry best practices and addresses your specific business requirements effectively.

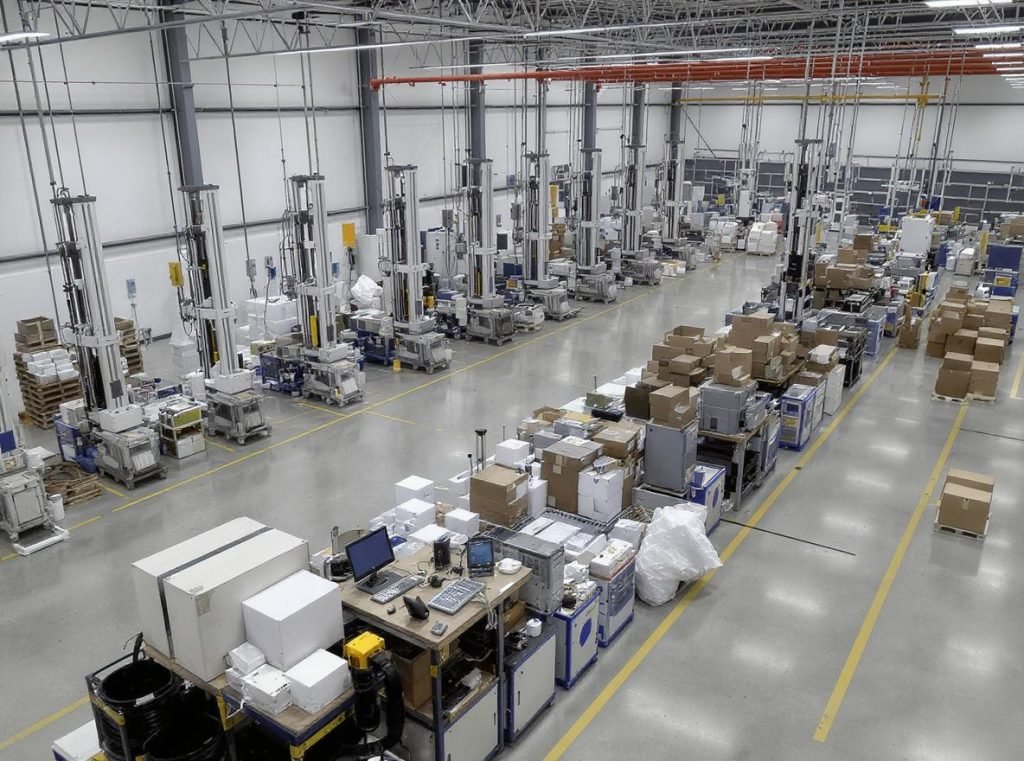

How Can Professional Testing Services Benefit Your Business?
Working with certified testing laboratories and experienced packaging manufacturers provides access to specialized equipment, expertise, and industry knowledge that ensures comprehensive evaluation.
Professional testing services offer ISTA certification, ISO 17025 accreditation, proper equipment calibration, and standardized procedures. These services provide comprehensive documentation for regulatory compliance and support continuous improvement initiatives.
Certified Testing Laboratory Requirements
Professional testing facilities must meet specific standards:
- ISTA laboratory certification for packaging testing
- ISO 17025 accreditation for technical competence
- Proper equipment calibration and maintenance
- Trained personnel with testing expertise
- Standardized procedures and documentation
Comprehensive Testing Programs
Professional testing services provide:
- Multiple test method capabilities under one roof
- Correlation analysis between different test methods
- Environmental conditioning and specialized testing
- Detailed reporting and documentation
- Regulatory compliance support
Continuous Improvement Integration
Regular testing programs support ongoing quality improvement through:
- Performance trend analysis over time
- Failure mode identification and prevention
- Cost optimization opportunities
- Sustainability enhancement initiatives
- Benchmarking against industry standards
Working with Acreet’s packaging experts ensures access to comprehensive testing capabilities and industry expertise that helps optimize your packaging performance while meeting specific business requirements.
Summary
Testing corrugated box strength and durability requires multiple standardized methods including BCT, ECT, drop testing, vibration testing, and environmental conditioning. Each test addresses specific performance aspects from stacking strength to real-world handling durability. Professional testing programs enable data-driven packaging decisions that optimize protection, cost, and performance for your specific applications.
