What Manufacturing Tolerances Are Required for Rigid Box Fit?
Understanding tolerance requirements is crucial for packaging professionals who demand consistent quality. Even slight variations can result in boxes that either don’t close properly or fall apart during handling.
Standard manufacturing tolerances for rigid boxes range from ±1/16″ (1.5mm) to ±1/8″ (3mm) for external dimensions, with die-cutting precision varying from ±0.001″ to ±0.020″ depending on the manufacturing technique used. Tighter tolerances require more expensive tooling and stricter quality control processes.
The tolerance requirements vary significantly based on manufacturing technique and application demands. Steel rule dies provide typical precision of ±0.010″ to ±0.015″, making them suitable for standard rigid box applications where cost-effectiveness matters most.
For enhanced accuracy requirements, solid milled dies achieve ±0.005″ to ±0.010″ precision, ideal for luxury packaging where perfect fit is non-negotiable. Ultra-precise applications utilize male/female dies with tolerances as tight as ±0.001″ to ±0.005″.
Digital die-less cutting offers flexibility with ±0.010″ to ±0.020″ accuracy depending on part size. This technology provides rapid prototyping capabilities and eliminates tooling costs for short runs, though precision may not match traditional die-cutting methods.
| Manufacturing Method | Tolerance Range | Typical Applications | Cost Impact |
|---|---|---|---|
| Steel Rule Dies | ±0.010″ to ±0.015″ | Standard rigid boxes | Low |
| Solid Milled Dies | ±0.005″ to ±0.010″ | Premium packaging | Medium |
| Male/Female Dies | ±0.001″ to ±0.005″ | Ultra-precise applications | High |
| Digital Die-Less | ±0.010″ to ±0.020″ | Prototypes, short runs | Variable |
The PMMI/FBA publication establishes industry standards stating that RSC panels measured from scoreline to scoreline should not exceed ±1/16″ (1.5mm), with overall blank length tolerances of ±1/8″ (3mm). These standards provide benchmarks for quality control and customer expectations.
Production environment factors influence achievable tolerances. Temperature and humidity variations affect material stability during manufacturing. Professional facilities maintain controlled environments to minimize these variables and achieve consistent results across production runs.
How Does Board Thickness Consistency Impact Lid-Base Alignment?
Board thickness consistency represents the foundation of perfect rigid box fit. Multiple material properties correlate directly to thickness, including overall box strength, bending stiffness, and structural integrity.
Thickness variations in chipboard can cause uneven fit between lid and base components, structural weakness at connection points, and aesthetic inconsistencies. Professional rigid box manufacturing uses high-grade chipboard with thicknesses ranging from 1.5mm to 3mm, with measurement accuracy of ±0.0002″ to ±0.0003″ (±0.00508 mm to ±0.00762 mm).
Material specifications play a crucial role in achieving consistent thickness. Rigid boxes commonly use chipboard (greyboard) with weight options from 800gsm to 2000gsm, providing the strength and rigidity required for premium packaging applications.
MDF (Medium-Density Fiberboard) serves ultra-premium applications requiring maximum rigidity and dimensional stability. While more expensive than standard chipboard, MDF offers superior thickness consistency and structural performance for luxury packaging.
Specialty paperboard options provide customized thickness solutions for specific durability requirements. These materials undergo rigorous quality control during manufacturing to ensure consistent caliper throughout production runs.
Thickness testing utilizes specialized equipment capable of measuring with accuracy of ±0.0002″ to ±0.0003″. This precision enables manufacturers to detect variations that could affect box fit before they impact production quality.
The cumulative effect of thickness variations becomes critical in multi-layer constructions. Small variations in individual layers compound across walls, corners, and turning edges, potentially creating significant fitting problems in finished boxes.
Quality manufacturers implement statistical process control methods to monitor thickness consistency throughout production. Control charts track measurements over time, enabling identification of trends before they affect product quality.
Material conditioning prior to production helps minimize thickness variations. Proper storage in climate-controlled environments and adequate acclimation time reduce dimensional changes during manufacturing processes.
What Role Does Paper Selection Play in Achieving Perfect Fit?
Paper selection significantly impacts the final dimensions and fit quality of rigid boxes through thickness, texture, moisture content, and printing characteristics that affect manufacturing precision.
Paper thickness directly affects overall box dimensions and fit tolerances, with heavier papers requiring dimensional adjustments to maintain proper fit. Optimal moisture content ensures clean scoring and prevents cracking during folding, while specialty papers like litho-laminate offer superior print quality and structural integrity for premium applications.
Material selection criteria encompass multiple factors that influence manufacturing precision. Paper thickness affects the final dimensions and requires careful consideration during design to maintain proper fit tolerances between lid and base components.
Texture and surface characteristics influence measurement precision and material handling during production. Glossy and smooth paperboard provides different tactile sensations compared to textured alternatives, affecting both manufacturing processes and customer experience.
Printing suitability determines the paper’s ability to accept high-quality graphics without compromising structural integrity. Premium rigid boxes often require complex printing processes that must not affect dimensional accuracy or material properties.

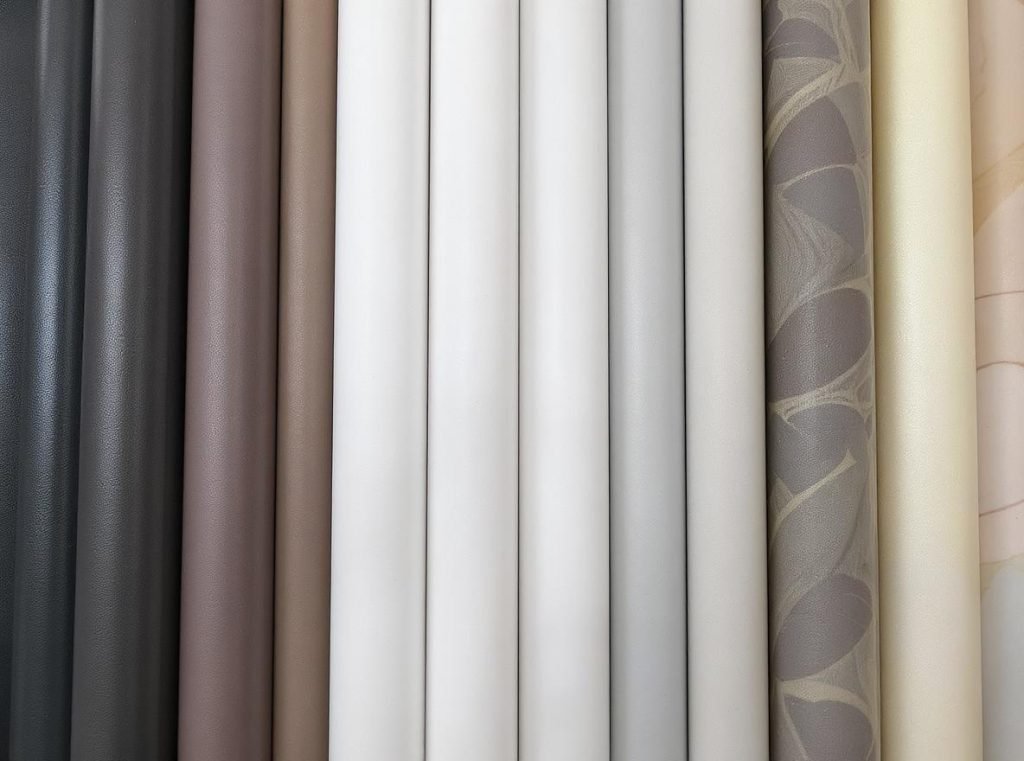

Modern rigid box manufacturing utilizes various specialty paper options to achieve optimal results:
- Litho-laminate: Premier choice offering superior print quality and structural integrity
- Metalized Papers: Provide reflective, premium aesthetic appeal while maintaining dimensional stability
- Fabric-Wrapped Boards: Add tactile elegance for luxury applications requiring exceptional presentation
- Recycled Kraft: Sustainable option for eco-conscious branding without compromising performance
Moisture content optimization ensures clean scoring and prevents cracking during folding operations. Paper with proper moisture content maintains dimensional stability throughout manufacturing and storage.
Adhesive compatibility affects bonding quality and dimensional accuracy. Different papers require specific adhesive formulations to achieve optimal results without causing thickness buildup or dimensional changes.
Environmental resistance characteristics determine how papers perform under varying temperature and humidity conditions during manufacturing, storage, and end-use applications.
How Do Quality Control Processes Ensure Consistent Fit?
Advanced quality control systems employ multiple inspection methods and technologies to ensure consistent rigid box fit throughout production runs, preventing costly defects and customer complaints.

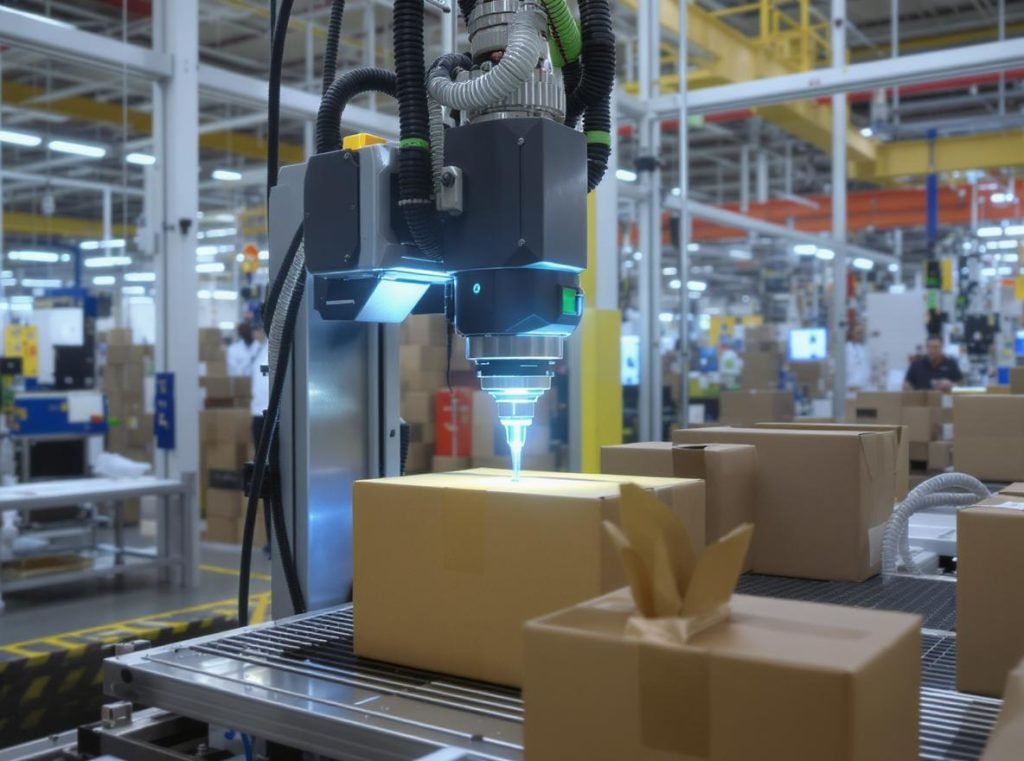

Modern quality control utilizes vision sensor technology for automated inspection, detecting missing or misaligned components, dimensional inconsistencies, and surface defects. Multi-point inspection protocols verify component alignment, adhesive bond quality, dimensional accuracy, and surface quality at multiple production stages.
Vision sensor technology represents the latest advancement in packaging quality control. These systems use machine-vision cameras with on-board intelligence optimized specifically for packaging inspection tasks, providing real-time quality assessment.
Advanced vision systems detect multiple defect types simultaneously. Missing or misaligned components get identified before final assembly, preventing defective products from reaching customers. Dimensional inconsistencies trigger immediate corrective action to maintain production quality.
Surface defects that could affect fit or appearance receive automatic detection and rejection. This includes scratches, dents, color variations, or printing defects that compromise product quality standards.
Multi-point inspection protocols ensure comprehensive quality verification throughout production. Component alignment checks verify proper positioning between lid and base components through precise machine calibration and measurement systems.
Adhesive bond quality verification ensures correct adhesive types and application amounts. Visual and tactile inspections identify inadequate bonding that could cause structural failure or fitting problems during use.
Dimensional accuracy receives double-checking before cutting operations, with immediate correction of any measurement errors. This prevents waste and ensures consistent fit across production runs.
| Inspection Stage | Parameters Verified | Frequency | Action Threshold |
|---|---|---|---|
| Material Receiving | Thickness, moisture, defects | Every batch | ±0.1mm variance |
| Pre-cutting | Dimensions, alignment | Continuous | ±0.05mm variance |
| Post-cutting | Cut quality, dimensions | Every 100 pieces | Visual defects |
| Assembly | Fit, bond quality | Random sampling | Functional failure |
Print quality verification includes regular printer calibration and test print reviews before full production runs. This ensures consistent color accuracy and registration that meets customer specifications.
Statistical process control methods track quality metrics over time, identifying trends that could indicate equipment wear or process drift. Control charts enable proactive maintenance and adjustment before quality problems develop.
Documentation systems provide traceability and enable continuous improvement. Production records include material lot numbers, equipment settings, environmental conditions, and quality measurements for complete production history.
What Equipment and Tools Enable Precise Manufacturing?
Professional rigid box manufacturing requires sophisticated equipment and precision tools to achieve the tight tolerances demanded by premium packaging applications.

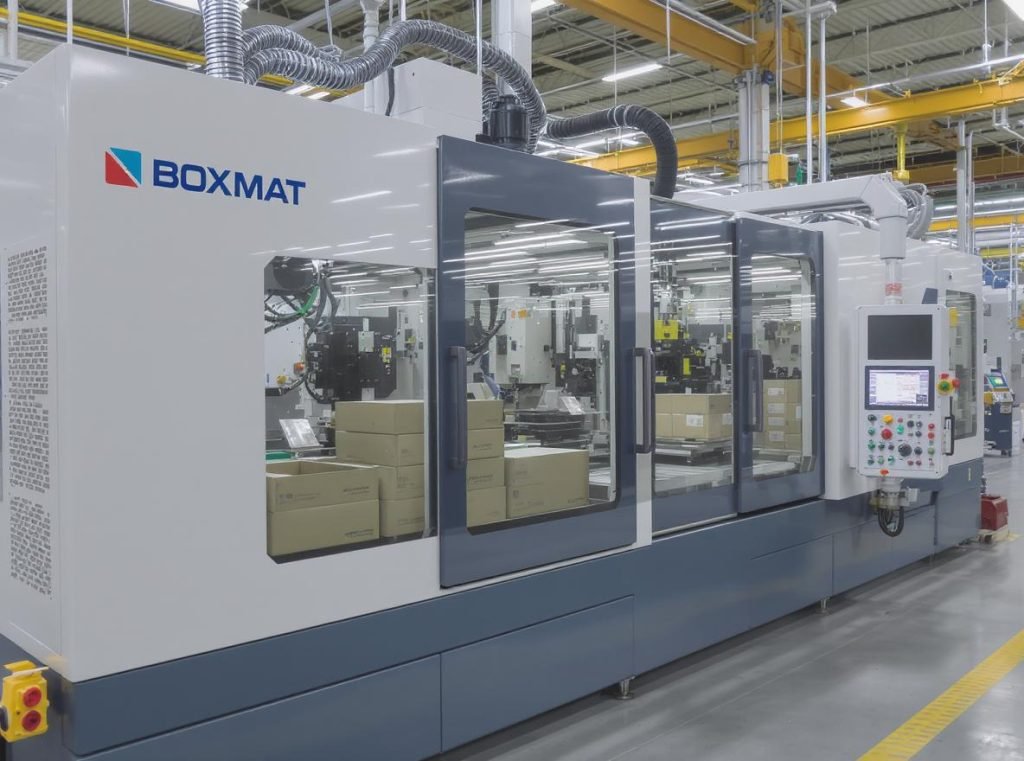

Advanced box-making machinery includes BOXMAT series machines with servo-driven tools and automatic setup capabilities, Emmeci lamination machines for substrate bonding, and specialized glue application systems with PLC control and servo drives achieving production speeds of 14-20 pieces per minute with consistent quality.
BOXMAT series machines represent industry-leading technology for rigid box production. These machines feature servo-driven tools that provide precise control over cutting, scoring, and forming operations. Automatic setup capabilities reduce changeover time and eliminate manual adjustment errors.
Key features of advanced box-making equipment include counter-knife and counter-scoring systems for precision cutting, automatic tool recognition and positioning for consistent setup, and advanced pressure control systems calibrated to material thickness requirements.

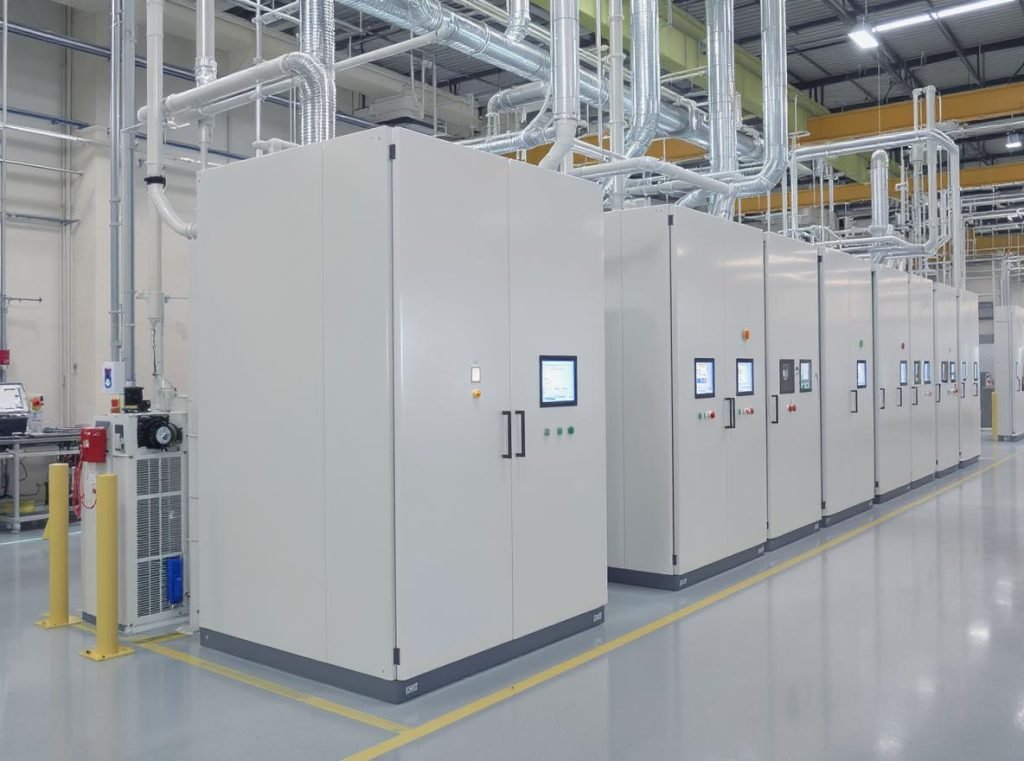

Integration with quality management systems enables real-time monitoring and control of production parameters. These systems automatically adjust settings based on material properties and quality feedback from inspection systems.
Emmeci lamination machines serve as industry standard equipment for rigid box substrate lamination. These machines work with specialized animal glues optimized for rigid box applications, providing superior bonding strength and durability compared to synthetic alternatives.
Precision scoring equipment creates sharp, clean fold lines essential for proper box assembly and fit. Die-based scoring uses specialized scoring rules designed for specific material thicknesses and fold requirements.
Proper scoring techniques include grain direction consideration for optimal fold quality and precise pressure control calibrated to material properties. Inadequate scoring creates rough fold lines that affect both appearance and dimensional accuracy.
Glue application systems utilize automated control for consistent bonding results:
- PLC-controlled systems with servo drives provide precise adhesive placement and volume control
- Hot melt and cold glue options accommodate different environmental requirements and production speeds
- Visual positioning systems ensure accurate glue placement for optimal bond strength
- Photoelectric detection verifies proper adhesive application before assembly

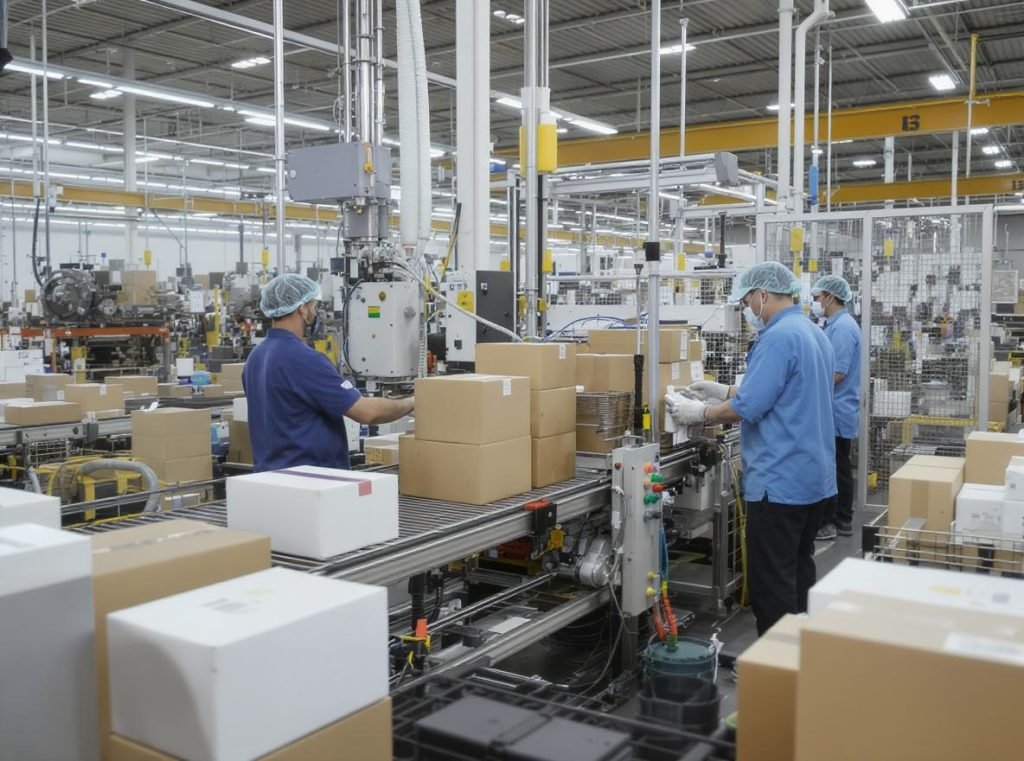

Modern manufacturing facilities integrate multiple systems for comprehensive process control. Computer-controlled monitoring adjusts production parameters automatically based on quality feedback and material properties.
Equipment maintenance programs ensure consistent performance and precision over time. Regular calibration, tool replacement, and preventive maintenance prevent quality degradation and production interruptions.
How Do Environmental Factors Affect Box Fit Consistency?
Environmental conditions during manufacturing, storage, and transportation significantly impact rigid box dimensions and fit quality through material expansion, contraction, and moisture content changes.
Relative humidity and temperature variations cause paper and corrugated materials to expand or contract, with corrugated solutions handling up to 90% RH in cold chain logistics. Manufacturing environments maintain standard operating ranges of 5°C to 40°C (41°F to 104°F) with relative humidity from 5% to 85% non-condensing.
Humidity effects represent the primary environmental challenge for rigid box manufacturing. Paper and corrugated materials readily absorb or release moisture, causing dimensional changes that directly affect fit tolerances between lid and base components.
Material strength correlates directly with moisture content, affecting structural integrity and dimensional stability. Excessive moisture can cause materials to expand beyond acceptable tolerances, while insufficient moisture may cause brittleness and cracking.
Temperature considerations encompass both manufacturing environment and end-use conditions. Standard operating ranges ensure consistent material properties during production while accommodating typical storage and transportation conditions.
Manufacturing environment control prevents material expansion and contraction during production. Consistent temperature and humidity minimize dimensional variations that could affect fit tolerances and product quality.
Cold chain logistics present particular challenges for packaging performance. Corrugated solutions must maintain structural integrity at up to 90% relative humidity while protecting products throughout the distribution chain.
Storage and handling conditions after manufacturing continue to affect box performance. Temperature fluctuations cause material expansion and contraction that can affect fit quality by delivery time.
UV exposure during storage or display can degrade material properties over time. Proper storage in controlled environments protects both structural integrity and appearance quality.
Environmental testing validates packaging performance under expected conditions. Accelerated aging tests simulate long-term storage effects, while temperature and humidity cycling tests verify dimensional stability.
Climate control during transportation becomes critical for maintaining product quality. Shipping containers experience significant environmental variations that can affect material properties and dimensional accuracy.
Quality manufacturers provide environmental specifications and handling recommendations to help customers maintain product integrity throughout distribution and storage.
What Common Mistakes Should You Avoid?
Understanding frequent fitting problems helps prevent costly production issues and customer complaints, with most problems stemming from predictable causes that proper planning and execution can eliminate.
The most common mistakes include incorrect dimensional specifications through estimation rather than precise measurement, inadequate tolerance control during production, poor material selection based solely on cost, insufficient quality control protocols, and neglecting environmental factors that affect material properties and dimensional stability.
Design and planning errors create fundamental problems that affect entire production runs. Incorrect dimensional specifications result from estimating rather than precisely measuring product dimensions, leading to poor fit and material waste.
Neglecting accessory space represents a frequent oversight. Failing to account for inserts, manuals, or protective materials when calculating internal dimensions creates boxes that cannot accommodate their intended contents properly.
Ignoring structural requirements while prioritizing aesthetics results in boxes that look attractive but fail to protect products adequately or maintain dimensional accuracy under normal use conditions.
Manufacturing process mistakes compound design errors and create additional quality problems. Inadequate tolerance control throughout production runs allows dimensional variations to exceed acceptable limits.
Poor material selection based solely on cost considerations without evaluating performance requirements leads to structural failures and fitting problems that damage brand reputation and increase total costs.
Insufficient quality control protocols create systematic problems that affect customer satisfaction. Skipping prototype testing eliminates opportunities to identify and correct design problems before full production.
Environmental oversights include failing to account for environmental factors that affect material properties and dimensional stability during manufacturing, storage, and transportation.
- Material handling errors: Improper storage conditions affecting moisture content and dimensional stability
- Production environment neglect: Inadequate temperature and humidity control during manufacturing
- Quality control shortcuts: Eliminating inspection steps to reduce costs and production time
- Documentation failures: Inadequate record-keeping preventing problem identification and correction
Process control failures allow small problems to become major quality issues. Inadequate monitoring of critical parameters enables drift that affects product consistency and customer satisfaction.
Communication breakdowns between design, production, and quality control teams create misunderstandings that result in products that don’t meet specifications or customer expectations.
Training deficiencies prevent operators from recognizing and correcting quality problems during production. Proper training programs ensure consistent execution of quality procedures and immediate response to problems.
Vendor management issues include inadequate material specifications, insufficient supplier quality control, and poor communication regarding requirements and changes.
